Slide 4 of 19

Notes:

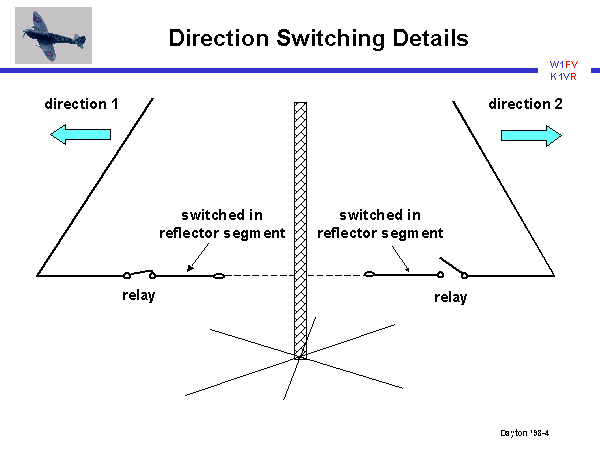

Direction switching is accomplished by simple relay switching which adds in a length of wire along the lower horizontal portion of the parasitic element to change it from a director to reflector or vice versa. One relay is closed while the other is opened.
