Slide 10 of 19

Notes:

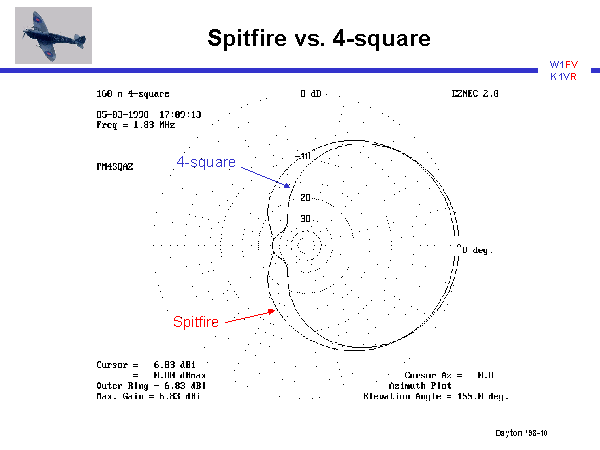

The azimuth pattern of the Spitfire is now compared to the “dream” 4-square (at 25 degrees elevation angle). The 4-square provides about a half dB additional gain in the forward direction and somewhat better rejection to the rear, but the Spitfire comes within spitting distance of it!
