Slide 7 of 19

Notes:

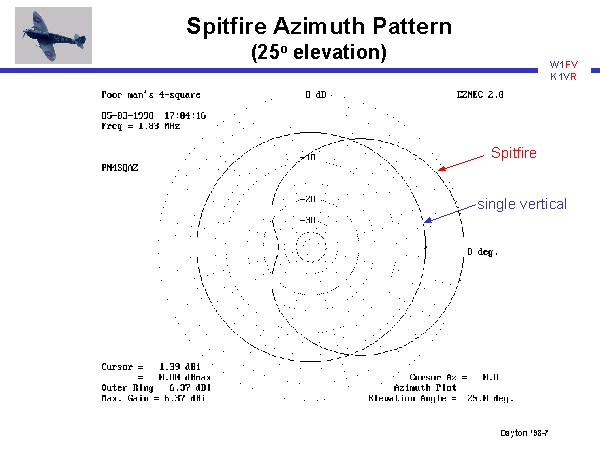

The azimuth pattern, taken at an elevation angle of 25 degrees is shown and compared with the omnidirectional vertical. The theoretical F/B approaches 30 dB at the design frequency.
