Slide 8 of 19

Notes:

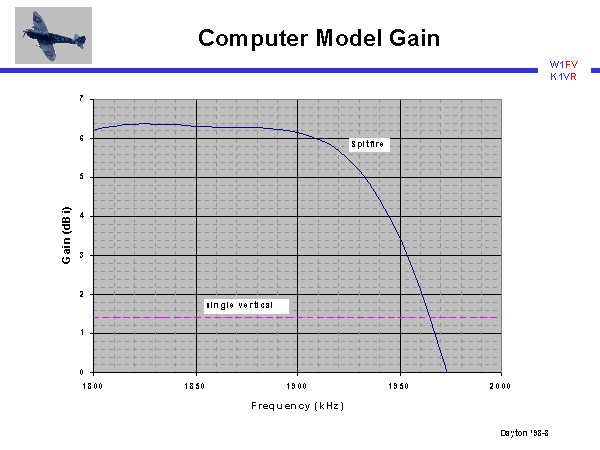

The computed gain is shown across the entire 160 meter band. The design frequency is around 1830 kHz. The gain holds up well from the low end of the band up to the “JA window”, and drops off sharply above that. For reference, the gain of a single vertical (some 5 dB less) is also shown.
